Mini Extruders

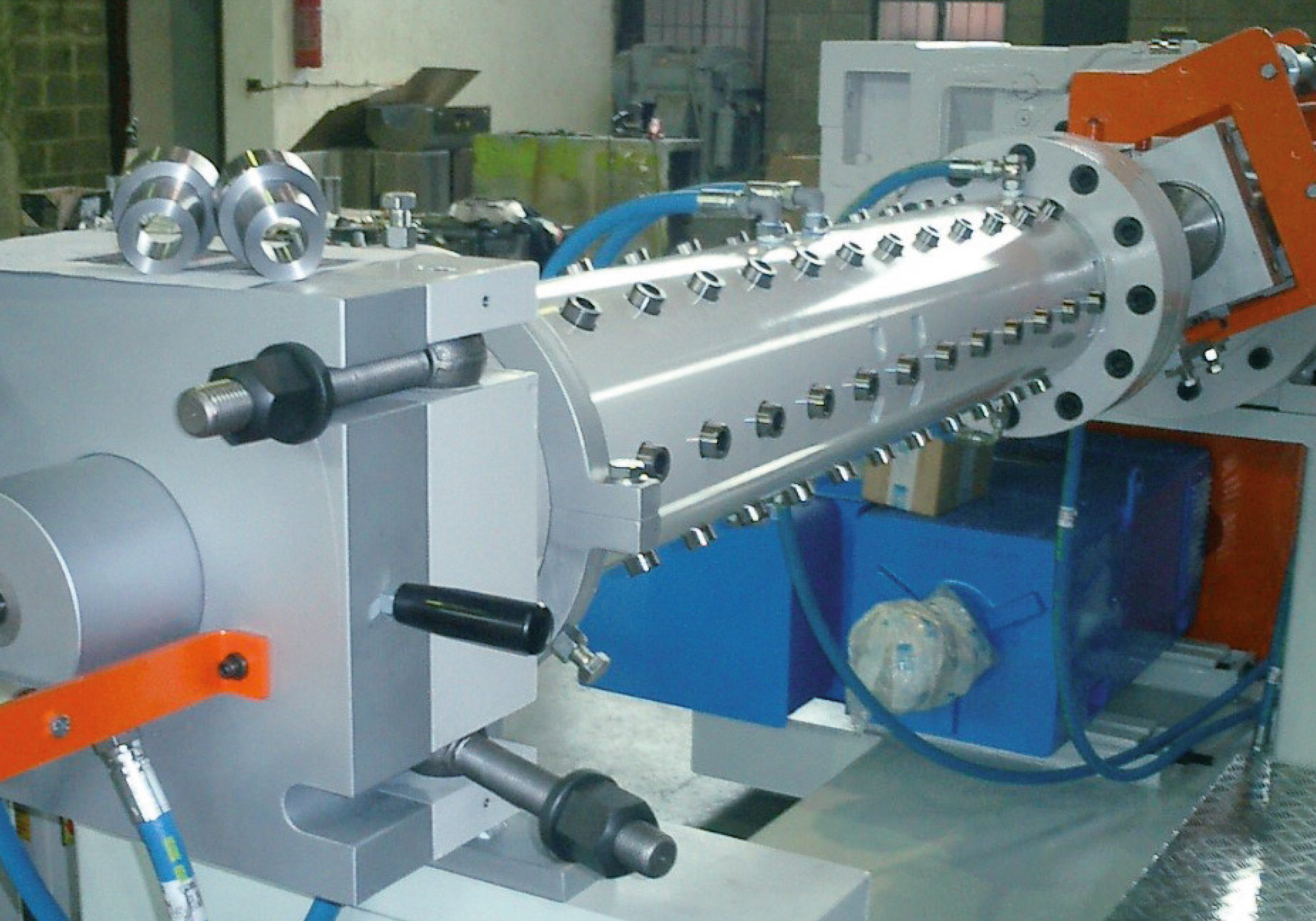

Extruder Diameter 40 LD30 Degasaggio

Extruder Diameter 40 LD30 Degasaggio

Extruder Diameter 40 LD30 Degasaggio

Extruder Diameter 40 LD30 Degasaggio

Extruder Diameter 35 LD25 granulator dry cutting PVC

Extruder Diameter 35 LD25 for Surlyn

Technical details

The parallel axis reducer is composed by a G 25 cast iron box and by cylindrical gears with 16CrNi4 steel helicoidal teeth, reinforced and rectified in order to reduce the noise during functioning. The axial bearing is proportioned on each size, in order to guarantee a perfect resistance to axial and radial loads.

Standard cylinders and screws assembled on our semi-extruders are made of 41 CrAIMo7 steel, nitrided with vertical gas nitride process for 72 h, class NT5, reaching a final hardness of HV 900-1000. The cylinder is internally striped around the hopper hole area, in order to obtain a better material load.
It is also possible to assemble special groups with bi-metallic cylinder (anti-scraping, anti-corrosion or with both features) and cap or reported screw with special alloys, different from one another according to the applications needs.
The profile and geometry of screws are designed taking into account the material to be worked, in order to obtain the best result in terms of plastification and performance.
